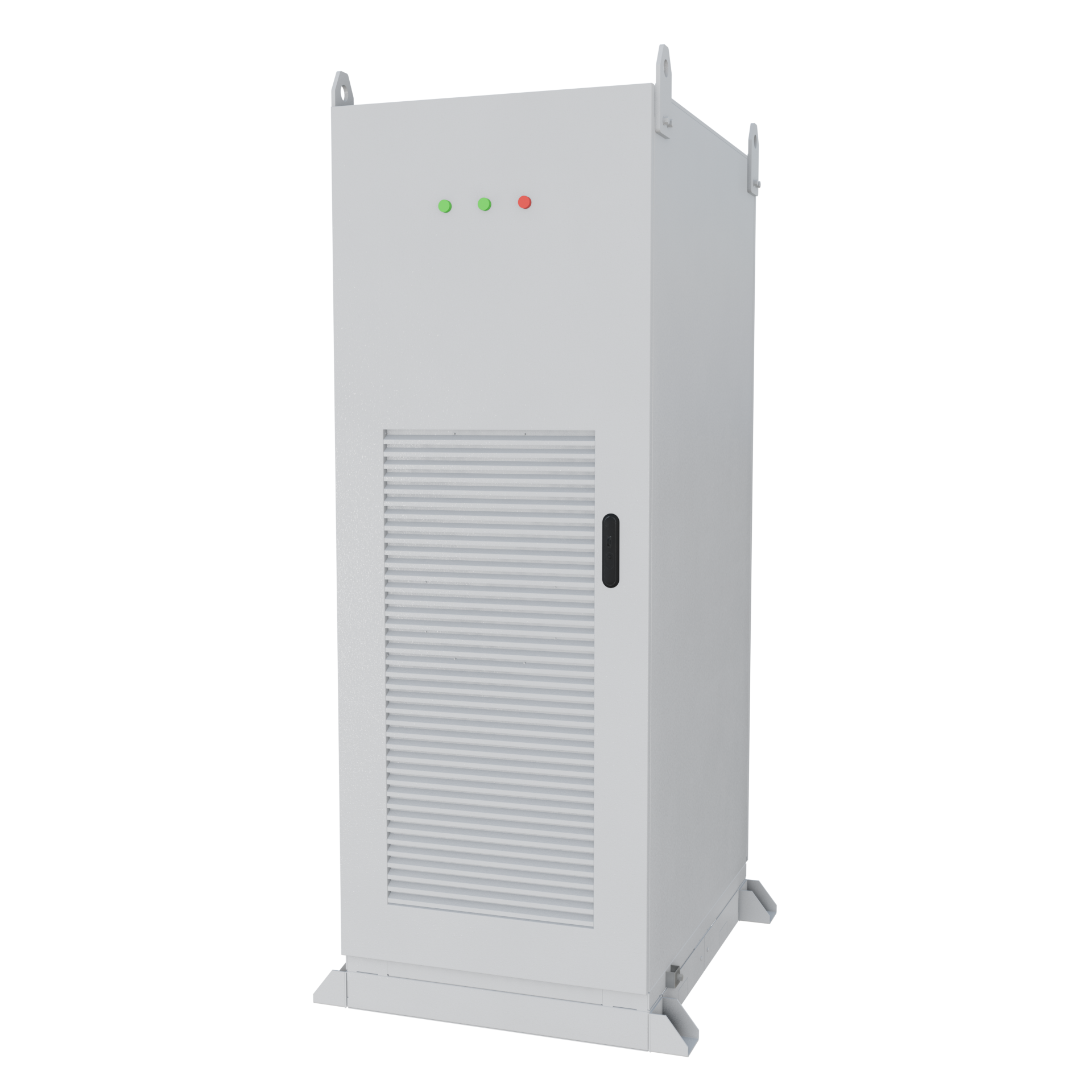

      <h2>Smarten Power 600</h2><br>
      <h4><strong>based on Smarten Power 150</strong> </h4>
      <h4><strong>600kVA SiC converter solution for micro-grids</strong> </h4>
      <li>Modular design</li>
      <li>Humidity resistant</li>
      <li>Built-in synchronizing function</li>
      <li>Easy expandable</li>
      <li>Endurable</li>
      <li>Flexible</li>
      <li>Multifunction</li>
      <li>Virtual Synchronous Generator</li>
    </div>
  </div>
</div>












  <script>
$(document).ready(function(){
  // Add smooth scrolling to all links in navbar + footer link
  $(".navbar a, footer a[href='#myPage']").on('click', function(event) {
    // Make sure this.hash has a value before overriding default behavior
    if (this.hash !== "") {
      // Prevent default anchor click behavior
      event.preventDefault();

      // Store hash
      var hash = this.hash;

      // Using jQuery's animate() method to add smooth page scroll
      // The optional number (900) specifies the number of milliseconds it takes to scroll to the specified area
      $('html, body').animate({
        scrollTop: $(hash).offset().top
      }, 900, function(){

        // Add hash (#) to URL when done scrolling (default click behavior)
        window.location.hash = hash;
      });
    } // End if
  });

  $(window).scroll(function() {
    $(".slideanim").each(function(){
      var pos = $(this).offset().top;

      var winTop = $(window).scrollTop();
        if (pos < winTop + 600) {
          $(this).addClass("slide");
        }
    });
  });
})
</script>
<H2>Smarten Power 600 Parameters</H2>
AC connection 3P4W+PE or 3P3W+PE or 2P3W+PE(split-phase)
AC voltage range 400/415/480Vac
Operation ambient temperature -25~+50ºC
Storing ambient temperature -40~70ºC
Humidity 0%-100% RH
Altitude <1km no derating, between 1~4 km derate consist with IEC62040-3
Noise 66-75dB
Typical efficient >98%
Safety compliance CE (certification pending)
UL1741 (certification pending)
Isolation Non-isolated
Over-voltage category DC: OVC II 2.5kV
AC: OVC III 4kV
Size (mm) 2250 H x 800 W x 1150 D
Weight (kg) 390
Mounting Floor standing
Ingress Protection IP20 with special treatment for moisture
IP65 for core components
NEMA rating NEMA 3R
Grid-support mode
AC Nominal Voltage 400/415/480 V (3P4W or 3P3W)
AC Current 0~865 A@ 45°C (charge or discharge)
AC Nominal Power 45°C 600 kVA @400V
620 kVA @415V
720 kVA @480V
AC Frequency 50 or 60Hz (±2.5Hz)
AC Power Factor 0~1 leading or lagging (Controllable)
Standalone mode
AC voltage 400/415/480 V (3P4W or 3P3W)
AC current 0~865 A@ 45°C
AC Power 45°C 600 kVA @400V
620 kVA @415V
720 kVA @480V
AC Power Overload Capability 952 A long term
1124 A withstands for 30s
1512 A withstands for 3s
2160 A withstands for 20ms
Note:Motors without starter may cause 7 times of rated current inrush.
Welding machine may cause 10 times inrush.
AC Frequency 45 ~ 62.5Hz Adjustable
AC Output PF 0~1 leading or lagging (Load-depend)
THDU <1% for linear loads
< 3% for non-linear load (tested with RCD load)
DC parameters
Battery voltage range 600V~1000V
Nominal current 290 A x 4, single bus or separated buses
System capability
Communication interface(info hub) Dry contact
RS485x3(module+BMS+reserved)
CANx2
Ethernet
4G LTE (optional)
Communication interface (module) HS485(parallel operation)
RS485x2(BMS+Monitor)
CANx3(BMS+Monitor+programming)
Ethernet
External AC current (Current Transformer) analog input x3
External AC voltage analog input x3
External contactor controlx2
Dry contact DO x4 (Programmable)
Dry contact DI x4 (Programmable)
