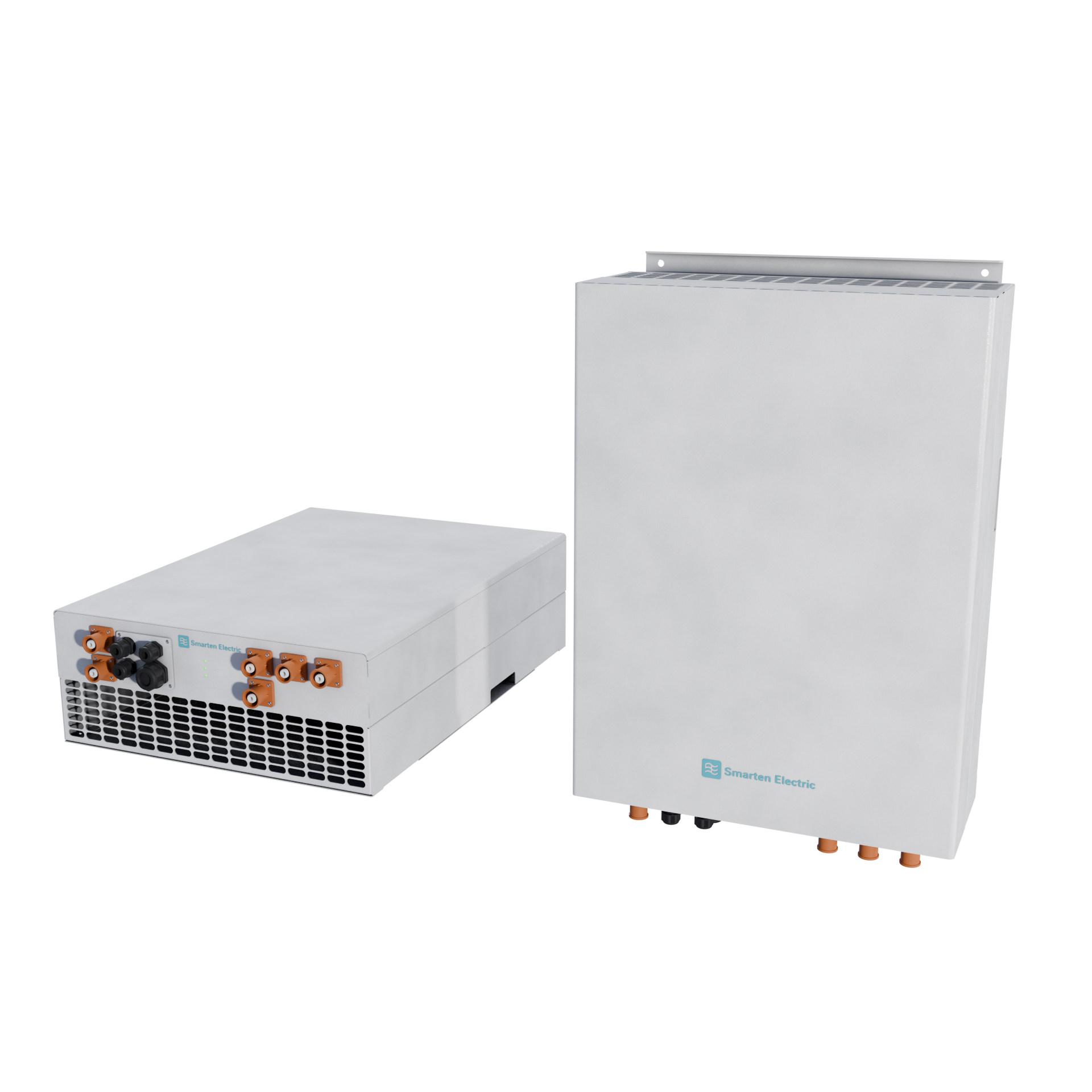

Smarten Power 150


The world's first SiC converter solution for micro-grids between 100kW ~ 5MW

  • Humidity resistant
  • Built-in synchronizing function
  • Easy expandable
  • Endurable
  • Flexible
  • Multifunction

    • Smarten Power 150 Parameters
    AC connection 3P4W+PE or 3P3W+PE or 2P3W+PE(split-phase)
    AC voltage range 208/240(split-phase)/400/415/480Vac
    Operation ambient temperature -25~+50ºC
    Storing ambient temperature -40～70ºC
    Humidity 0%-100% RH
    Altitude <1km no derating, between 1~4 km derate consist with IEC62040-3
    Noise 66-75dB
    Typical efficient >98%
    Safety compliance CE
    UL1741
    Isolation Non-isolated
    Over-voltage category DC: OVC II 2.5kV
    AC: OVC III 4kV
    Size (mm) 680W*480D*190H
    Weight (kg) 51
    Mounting Wall mounted or Rack mounted
    Ingress Protection IP20 with special treatment for moisture
    IP65 for core components
    NEMA rating NEMA 3R
    On-grid mode
    AC Nominal Voltage 240V (Split-Phase)
    208/400/415/480 V (3P4W or 3P3W)
    AC Current 0~216.5 A@ 45°C (charge or discharge)
    AC Nominal Power 45°C 52 kVA @240V(Split-phase)
    75 kVA @208V
    150 kVA @400V
    155 kVA @415V
    180 kVA @480V
    AC Frequency 50 or 60Hz (±2.5Hz)
    AC Power Factor 0~1 leading or lagging (Controllable)
    Off-grid mode
    AC voltage 240V (Split-Phase)
    208/400/415/480 V (3P4W or 3P3W)
    AC current 0~216.5 A@ 45°C
    AC Power 45°C 52 kVA @240V(Split-phase)
    75 kVA @208V
    150 kVA @400V
    155 kVA @415V
    180 kVA @480V
    AC Power Overload Capability 238A long term
    281A withstands for 30s
    378A withstands for 3s
    540A withstands for 20ms
    Note:Motors without starter may cause 7 times of rated current inrush.
    Welding machine may cause 10 times inrush.
    AC Frequency 45 ~ 62.5Hz Adjustable
    AC Output PF 0~1 leading or lagging (Load-depend)
    THDU ＜1% for linear loads
    < 3% for non-linear load (tested with RCD load)
    DC parameters
    Battery voltage range 600V~1000V
    Nominal current 290Adc
    System capability
    Parallel 32 units max via HS485
    Communication interface(info hub) Dry contact
    RS485x3(module+BMS+reserved)
    CANx2
    Ethernet
    4G LTE (optional)
    Communication interface (module) HS485(parallel operation)
    RS485x2(BMS+Monitor)
    CANx3(BMS+Monitor+programming)
    Ethernet
    External AC current (Current Transformer) analog input x3
    External AC voltage analog input x3
    External contactor controlx2
    Dry contact DO x4 (Programmable)
    Dry contact DI x4 (Programmable)
